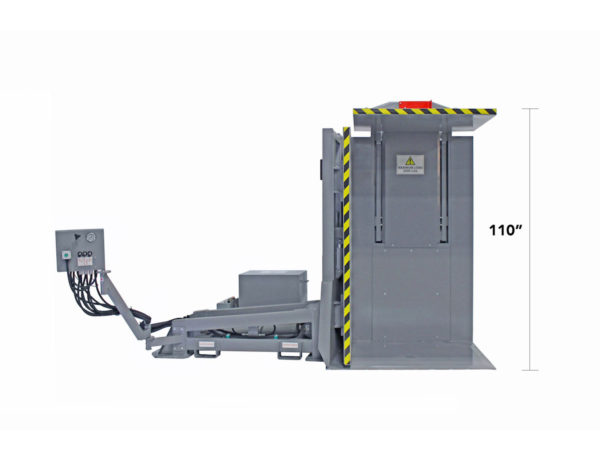

G95 Pallet Inverter

Price:

Jaw Opening: Max 90″ – Min 48″

  • Categories: G95 Pallet Inverters
  • Tags:

pallet inverter in stock

G95 Pallet Inverter Specs:

Jaw Opening Max 90″ – Min 48″
Capacity 3,300 lbs
Loading Tables 51″ x 51″
Controls Lever / Push Button
Power 3ph / 208,230,460,575V
Finish 2 Part Epoxy Acrylic Top Coat
Color Machine Gray
FOB Elgin, IL 60123
  •

The G95 Pallet Inverter /Freezer Spacer Removal System:

The G95 Pallet Inverter or Pallet Retriever style of transfer system was first developed in the mid-1980s for use in cold storages, blast freezing warehouses, or distribution-related facilities exporting products. It was designed as an alternative to the conventional 180° Pallet Inverter, which did not offer ground loading or pallet separation capabilities at the time which later became an industry standard. With that, the G95 Pallet Exchange / Pallet Retriever was developed.

The G95 Pallet Inverter Primary Uses:

  • Recovery of broken pallets
  • Simple transfer or exchange of in house or export pallets
  • Faster removal of blast freezing spacers, slats, or dividers
  • Reduce labor and eliminate lumping service needs
  • CHEP, IGPS, PECO, or other rental pool handling flexibility

Today these pallet inverters and exchanges are used in the following industries:

  • Cold Storages / Blast Freezing Facilities
  • Distribution Centers
  • 3rd Party Logistics
  • Meat, Poultry, Pork, and Seafood Processing Facilities among others
  • Regional Mixing Centers
  • And many more

As with all of the Premier Equipment, it incorporates a robust steel construction particularly suitable for the harshest environments including 24/7 operations pulling spacer dividers or exchanging pallets.

By tipping the load on its side just beyond 90° allows the load to rest on the skate table or sidewall. When the clamp is released from the top of the load it will allow the product to glide away from the pallet or load table enabling quick simple and safe pallet transfer, replacement, or freezer blasting slat removal.

HOW IT WORKS

When Removing Freezer Spacer/Slats or Blast Freezing Dividers:

  1. The load is placed in G95 Pallet Inverter / Pallet Retriever at ground level
  2. The load is clamped to secure the product as needed
  3. Load inverted from the ready position to 95º
  4. Load unclamped
  5. The product will then pull away from the load table via gravity / powered skate table
  6. Blasting Divider / Freezer Slats are then removed at comfortable working height
  7. Load is clamped
  8. The load is then inverted back up to the ready position
  9. Load is unclamped
  10. Load is removed

When Transferring or Exchanging In-house, Export, or Rental Pallets:

  1. The load is placed in G95 Inverter at ground level
  2. The load is clamped to secure the load as needed
  3. Load inverted down to horizontal position
  4. Load unclamped
  5. The old pallet is removed by hand and the new pallet is inserted by hand
  6. Load clamped to secure the load
  7. The load is then inverted back up to the ready position
  8. Load unclamped
  9. Transferred or Exchanged load is ready for long term storage or shipment staging
